3D Printer Projects

Download the parts on the left and then download microsoft sketchup (its free) so you can print them on your 3d printer. Download Sketchup here
*

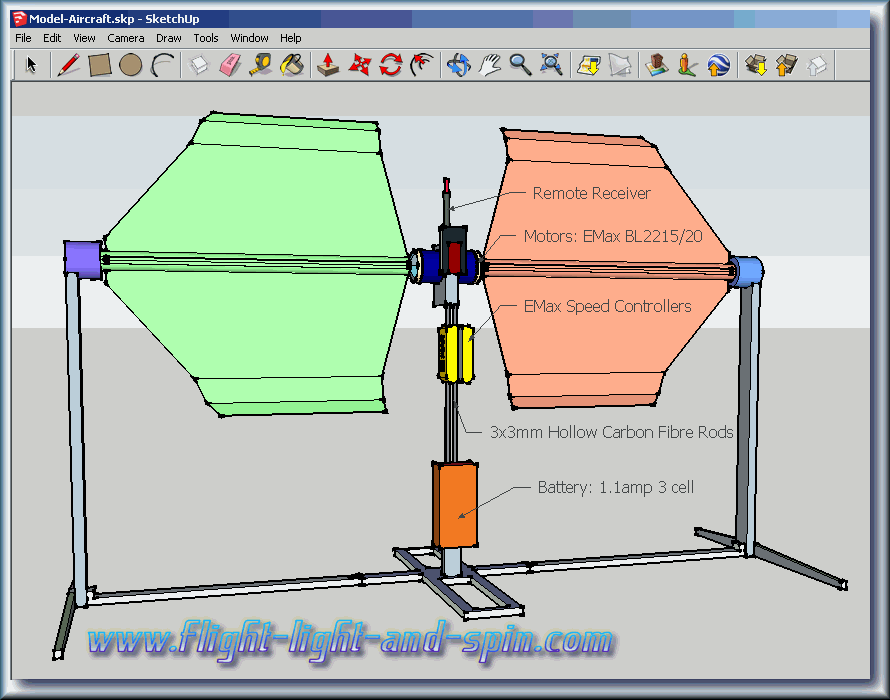

Model-Aircraft.skp	The entire model is fused together here.
Base-Left.skp
Base-Mid.skp	The model is in parts so that it can be printed via 30o mm 3D printer.
Base-Right.skp
Body-Fake.skp	This part needs real motors and battery of course.
Hold-Left.skp
Hold-Right.skp	There is a 1 mm radius gap around the holds at the wingtips.
Wing-Cut-L.skp
Wing-Cut-R.skp	Depending on which 3D printer you use, the cut wings may be easier.
Wing-Uncut-Left.skp
Wing-Uncut-Right.skp	In sketchup you need to reposition the parts at 'origin' before printing.
*
In order to fuse the parts together in sketchup, place each part at the 'origin' to fit. Feel free to alter the design to fit your 3d printer or intuition ;-j
